mofstructure

A Python toolkit for topology, porosity and building-unit analysis of metal-organic frameworks

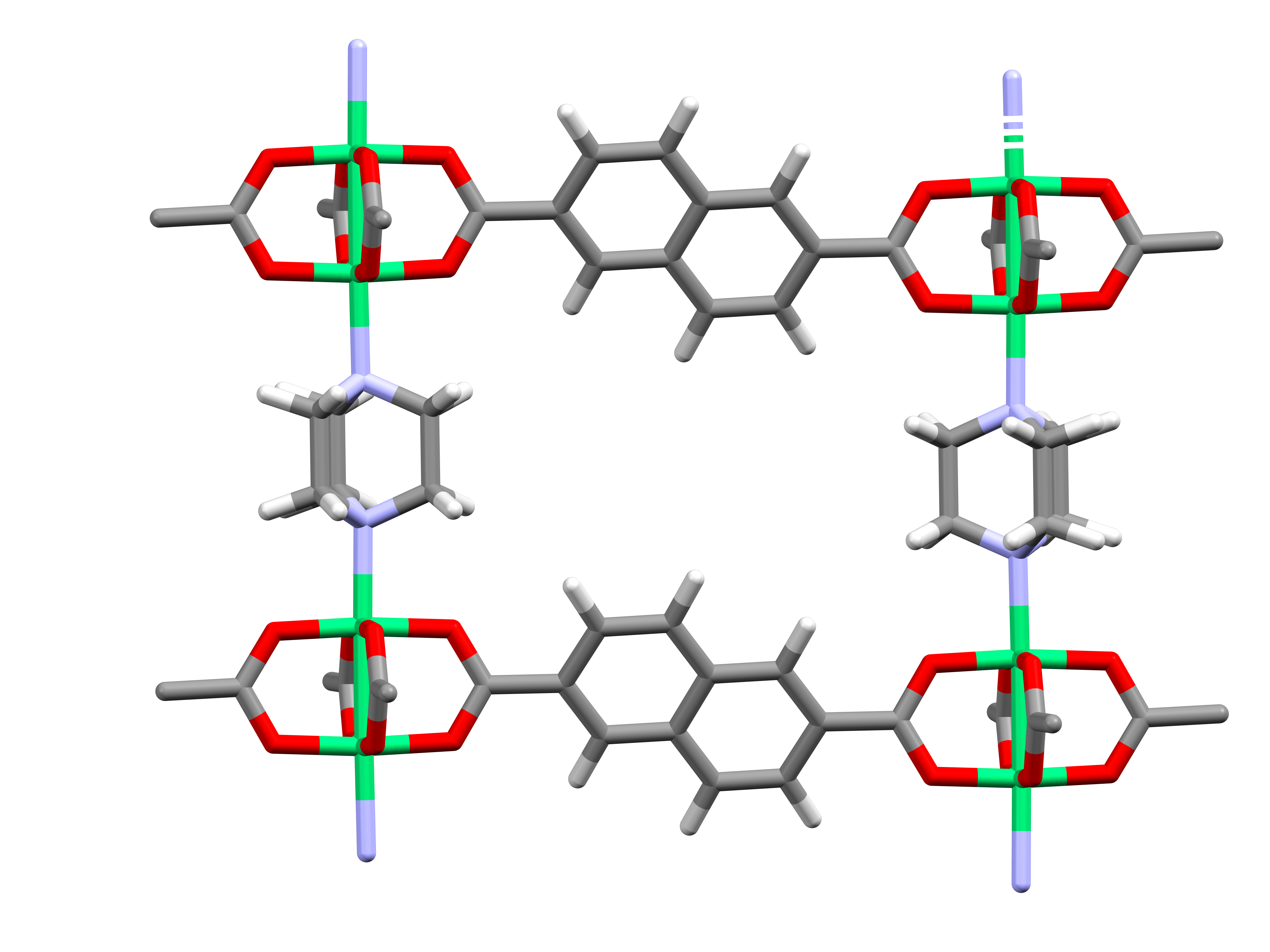

mofstructure takes a crystal structure and answers the questions that usually follow: what is it built from, how porous is it, and what net does it form. It works on metal-organic frameworks, and also on covalent organic frameworks and zeolites, from CIF or any other format ASE can read.

from mofstructure import structure

mof = structure.MOFstructure(filename='UiO-66.cif')

mof.get_porosity()                 # PLD, LCD, surface area, void fraction
mof.get_sbu()                      # metal and organic secondary building units
mof.get_topology()                 # RCSR net symbol, dimensionality, TD10
mof.get_oms()                      # open metal sites

---

Contents

• Features
• Installation
• Requirements
• Command line
• Python API
• Output reference
• Documentation
• Contributing
• Citation
• License
• Author

---

Features

Capability	What you get
Topology	RCSR net symbol via Systre, net dimensionality, TD10 density, a reproducible topology hash
Porosity	Pore limiting diameter, largest cavity diameter, accessible surface area and volume, channel count
Guest removal	Unbound solvent stripped automatically before every analysis
Deconstruction	Metal clusters, organic ligands, metal SBUs and organic SBUs as separate structures
Cheminformatics	SMILES, InChI and InChIKey for every building unit, plus IUPAC ligand names where known
SBU characterisation	SBU type (paddlewheel, rod-like, UiO-66-like and others) and metal coordination number
Open metal sites	Detection and local coordination environment of undercoordinated metals
Periodic wrapping	Fragments split across cell boundaries reassembled into whole molecules

---

Installation

From PyPI:

pip install mofstructure

From source, for the development version:

git clone https://github.com/bafgreat/mofstructure.git
cd mofstructure
pip install .

Requirements

Python 3.10 or newer. Dependencies install automatically, with two things worth knowing about:

• Java is required for topology only. Systre runs on the JVM, and the jar ships with the package. mofstructure looks for a JRE that you configure explicitly, then for jdk4py, then for java on your PATH. Every other feature works without it.
• RDKit is optional. OpenBabel handles the cheminformatics by default; install rdkit only if you want the alternative code path.

---

Command line

Each command accepts a single structure file or a folder of them.

Deconstruct one structure

mofstructure structure.cif                       # writes to ./MOF_building_units
mofstructure structure.cif path/to/results

Build a database from a folder

mofstructure_database cif_folder                 # writes to ./MOFDb
mofstructure_database cif_folder -s path/to/results
mofstructure_database cif_folder -t              # include topology

Results land in MOFDb/Structure_Data as JSON, one file per analysis, plus a CSV summary of the porosity. Structures already present are skipped, so an interrupted run resumes where it stopped. Delete the output folder to force a recomputation.

Individual analyses

Use these when you only need one thing and want it to run fast.

mofstructure_building_units cif_folder           # deconstruction only
mofstructure_porosity cif_folder                 # porosity only
mofstructure_oms cif_folder                      # open metal sites only

mofstructure_porosity accepts a custom probe radius, cycle count and radii file:

mofstructure_porosity cif_folder -pr 1.5 -ns 20000 -rf rad.rad

Topology from the command line

mofstructure_topology structure.cif
mofstructure_topology net.cgd
mofstructure_topology ./folder

The net depends on how you define a node, and three definitions are available. The same framework can legitimately give a different net under each.

mofstructure_topology structure.cif --method all_node
mofstructure_topology ./folder --method ligand_cluster
mofstructure_topology ./folder --method sbus

For large datasets, write results to disk in batches:

mofstructure_topology ./folder --flush-every 100

---

Python API

MOFstructure is the single entry point. Guests are removed internally, so a structure containing solvent needs no preparation.

from mofstructure import structure

mof = structure.MOFstructure(filename='UiO-66.cif')
# or pass an ASE atoms object directly
# mof = structure.MOFstructure(ase_atoms=atoms)

guest_free = mof.remove_guest()

Porosity

import pandas as pd

pores = mof.get_porosity(probe_radius=1.86, number_of_steps=5000, high_accuracy=True)
pd.DataFrame(pores, index=[0]).to_csv('pore.csv')

A structure that Zeo++ cannot analyse returns an empty dictionary rather than raising, so a batch job is never interrupted by one difficult framework.

Building units

metal_sbus, organic_sbus = mof.get_sbu(wrap_system=True, cheminfo=True, add_dummy=False)
organic_ligands = mof.get_ligands(wrap_system=True, cheminfo=True, add_dummy=False)

With cheminfo=True, OpenBabel identifiers are attached to each fragment's .info dictionary:

for i, sbu in enumerate(metal_sbus):
    smi = sbu.info['smi']
    inchi = sbu.info['inchi']
    inchikey = sbu.info['inchikey']
    n_points = len(sbu.info['point_of_extension'])   # SBUs only
    sbu_type = sbu.info['sbu_type']                  # metal SBUs only
    sbu.write(f'metal_sbu_{i}.cif')

add_dummy=True marks the points of extension with dummy atoms, which makes the cut positions explicit and easy to cap with hydrogen. Use it for SBUs only, never when deconstructing into ligands and clusters.

Ligand names

Building units carry identifiers but not names. To name a ligand, look it up from its SMILES against the database that ships with the package:

from mofstructure.filetyper import load_iupac_names
from mofstructure.mofdeconstructor import lookup_iupac_name

iupac_names = load_iupac_names()

_, ligands = mof.get_ligands()
for ligand in ligands:
    print(lookup_iupac_name(ligand.info['smi'], iupac_names))
# terephthalic acid

lookup_iupac_name saturates the open valences left by deconstruction and matches on InChIKey and canonical SMILES, so the fragment does not have to be the neutral parent molecule. It returns None for a ligand that is not in the database. mofstructure_database does this for you and stores the result in the ligand_names field of ligands_data.json.

Topology from Python

topology = mof.get_topology()
print(topology['topology'], topology['dimension'])

For finer control, drive Systre directly:

from ase.io import read
from mofstructure.systre import identify_topology

identify_topology('net.cgd', input_is_cgd=True)      # from a CGD file
identify_topology('UiO-66.cif', method='all_node')   # from a structure file
identify_topology(read('UiO-66.cif'))                # from ASE atoms

Open metal sites

print(mof.get_oms())

---

Output reference

get_topology() returns:

Key	Meaning
topology	RCSR net symbol, or UNKNOWN when Systre finds no match
dimension	Periodicity of the net (0, 1, 2 or 3)
td10	Topological density from Systre
topology_hash	Stable hash of the relaxed net, for indexing and duplicate detection
cgd	CRYSTAL2 text of the relaxed net

get_porosity() returns:

Key	Meaning
PLD_A	Pore limiting diameter, the largest sphere that can diffuse through
LCD_A	Largest cavity diameter, the largest sphere that fits anywhere inside
lfpd_A	Largest free sphere along the percolation path
AV_A^3, AV_Volume_fraction	Accessible volume and void fraction
ASA_A^2, ASA_m^2/cm^3	Accessible surface area
Number_of_channels	Number of distinct channels

Custom atomic radii can be supplied through a .rad file, one element per line. The extension must be .rad or the defaults are used silently:

Mg 0.66
O 1.84

---

Documentation

Full documentation is at docs. Release history is in CHANGELOG.md.

Contributing

Issues and pull requests are welcome. See CONTRIBUTING.md for development setup and what to include in a report.

Most problems are specific to one framework rather than general, so please attach the structure file when reporting one. A CIF that reproduces the problem is worth more than any description of it.

Roadmap

• SBU deconstruction and topological analysis of covalent organic frameworks.

Citation

If mofstructure contributes to your work, please cite:

@article{wonanke2026fairmofs,
  title={FAIR-MOFs: Structure-centred synthesis inference from three-dimensional
         structures of metal-organic frameworks},
  author={Wonanke, Dinga and Heine, Thomas and Longa, Antonio and others},
  year={2026},
  doi={10.21203/rs.3.rs-8375247/v1}
}

License

Released under the MIT License. See LICENSE.

Author

mofstructure is developed by Dinga Wonanke.
