Aozora Trainer

Aozora Trainer is a GUI-based model fine-tuning trainer focused on making full-model training practical on single consumer GPUs.

It is built for users who want more control than a preset-only trainer, but do not want to manage large JSON configs by hand. The goal is simple: train SDXL UNet and Anima DiT models efficiently on 12 GB class GPUs while keeping the important training controls visible, editable, and understandable.

Aozora is for users willing to trade some speed for control—and for the ability to train more of the model on hardware they already own.

[Currently supports]

• SDXL UNet models: epsilon (EPS), v-prediction (VPRED), and rectified flow
• Anima DiT models

Warning

Beta Software: This project is still in active development. It is functional and currently trains successfully on my system, but it has not been broadly tested across different hardware, drivers, models, or environments.

Current testing shows SDXL training can run with 80-90% of the full UNet trainable on 11.80 GB VRAM, at roughly 1.55 seconds per iteration and 10-15 seconds per optimizer step.

Expect rough edges, bugs, and setup-specific issues. The main goal is to make SDXL training practical on 12 GB VRAM GPUs without forcing low-resolution training or hiding every important option behind config files.

---

Quick Start

Requirements

• latest NVIDIA GPU driver
• Python 3.11
• Git for Windows
• NVIDIA GPU with 12 GB or more VRAM
• 32 GB system RAM
• at least 20 GB free disk space, plus room for model caches
• Windows 10/11

CUDA Toolkit 12.x through 13.3 is recommended when building CUDA extensions or wheels locally. Aozora's validated stack is CUDA 12.8. The standard installer uses prebuilt CUDA 12.8 packages, so a separate Toolkit is normally unnecessary.

For local wheel builds on Windows, install Visual Studio 2022 Build Tools with the Desktop development with C++ workload, MSVC tools, and a Windows SDK.

Windows Installation

Open Command Prompt or PowerShell and clone the repository:

git clone https://github.com/Hysocs/Aozora_Trainer.git
cd Aozora_Trainer

Then run setup from the same terminal:

setup.bat

This creates portable_Venv, installs PyTorch 2.9.1 with CUDA 12.8, and lets you choose Flash Attention 2 or xFormers.

Alternatively, open the cloned Aozora_Trainer folder in File Explorer and double-click setup.bat.

You can also download the repository as a ZIP from GitHub, extract it, and run setup.bat from the extracted folder.

Start the GUI

Run:

start_gui.bat

Select the model and dataset, choose the correct caption source, prediction type, and VAE settings, review the learning-rate curve, then press Train.

Recommended 12 GB VRAM Exclusions

SDXL Exclude Layers (Keywords):

down_blocks.2.*.transformer_blocks.*.ff.net.2.*, mid_block.*.transformer_blocks.*.ff.net.2.*, up_blocks.0.*.transformer_blocks.*.ff.net.2.*

Anima Exclude DiT Layers:

llm_adapter.*

Settings and How to Know if Training Is Working

• SDXL VAE: Match the Dataset-tab VAE settings to the base model and rebuild the cache after changes. Incorrect settings cause artifacts; use a preset if unsure.
• Learning rate: LR controls update strength. Start around 7.5e-6 and increase cautiously in 2.5e-6 increments.
• Timesteps: These are training noise levels. Use the uniform preset unless you have a reason to focus on a specific range.
• Loss weighting: This changes the importance of each timestep. Keep it flat at 1.0 unless you understand what the model needs.

Before a long run, test 20-50 images for 10-20 epochs and compare saved checkpoints with fixed generation settings. A healthy run learns gradually without damaging the base model. Fast artifacts usually mean excessive LR or incorrect VAE settings; little change suggests low LR, weak captions, or too little training.

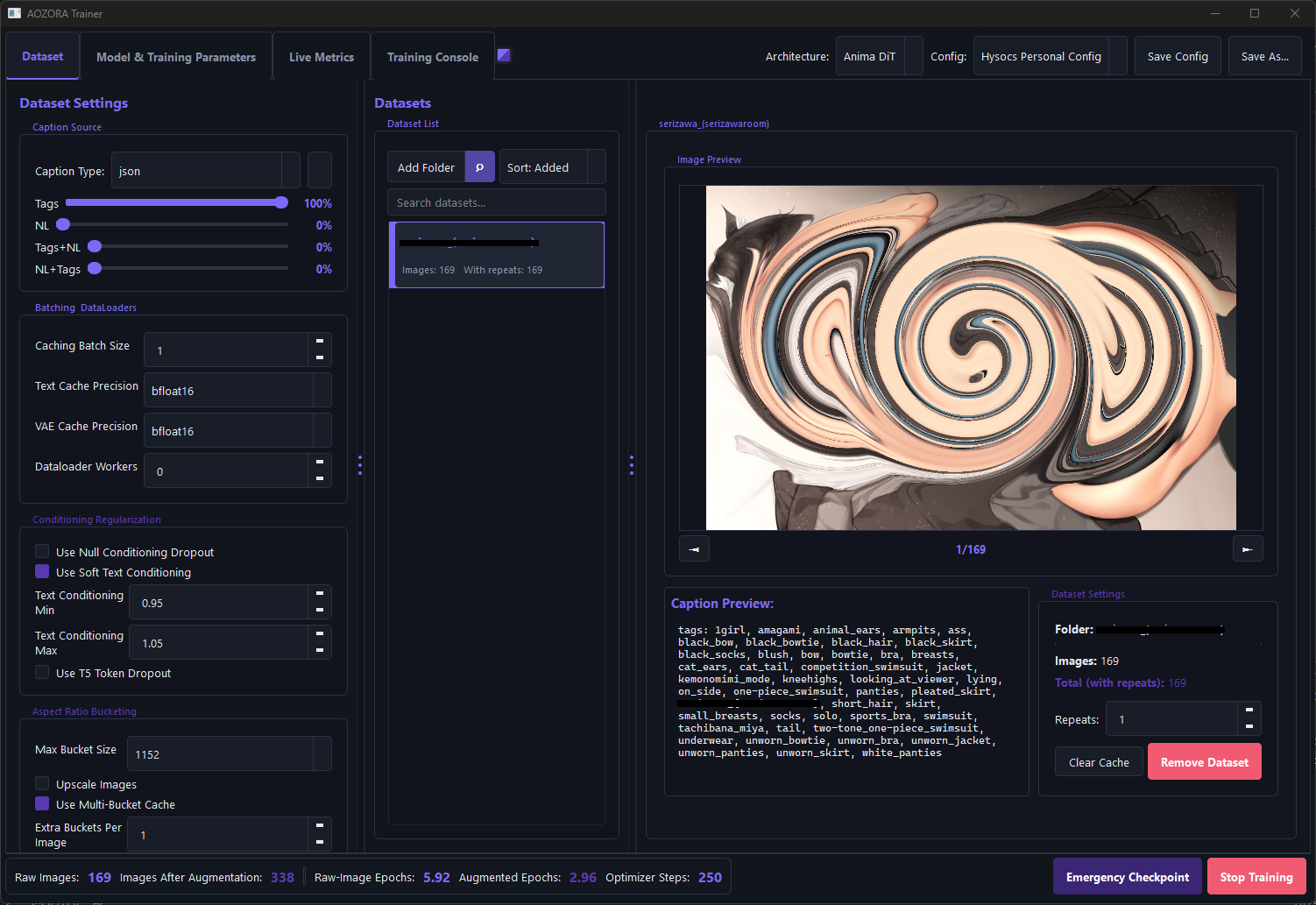

Dataset

Place images and optional matching captions in one folder:

dataset/
  image_001.txt
  image_002.txt

Captions must share the image's base name. Missing captions fall back to the filename. Supported images: .jpg, .jpeg, .png, .webp, .bmp.

Recommended JSON Captions

For more flexible training, select json as the GUI caption type and place a matching .json file beside every image:

dataset/
  image_001.json

{
  "tags": "score_9, score_8_up, source_anime, 1girl, solo, pink_hair",
  "nl": "An anime-style girl with pink hair is sitting in a bedroom.",
  "tags_nl": "score_9, score_8_up, source_anime, 1girl, solo, pink_hair. An anime-style girl with pink hair is sitting in a bedroom.",
  "nl_tags": "An anime-style girl with pink hair is sitting in a bedroom. score_9, score_8_up, source_anime, 1girl, solo, pink_hair"
}

The four keys provide tags, natural language, tags followed by natural language, and natural language followed by tags. Filling all four is recommended. Aozora caches every non-empty variant and uses the four GUI percentage controls to choose between them during training.

Command-line Training

After running setup.bat, you can train directly:

REM SDXL UNet
portable_Venv\Scripts\python.exe train.py --config "C:\path\to\config.json"

REM Anima DiT
portable_Venv\Scripts\python.exe train_anima.py --config "C:\path\to\config.json"

---

Feature Overview

Low-VRAM Full-Model Training

Aozora keeps full-model training practical on consumer GPUs through:

• CPU-offloaded optimizer states
• mixed precision training
• gradient checkpointing
• memory-efficient attention backends
• latent and text-embedding caching
• selective layer targeting

GUI-Based Training Workflow

The GUI exposes datasets, model and VAE paths, prediction type, batching, precision, optimizers, learning-rate and timestep graphs, layer exclusions, caching, checkpointing, and resume settings.

Custom Optimizers

Raven

Raven is the balanced default. It stores optimizer state on the CPU and uses shared GPU buffers for FP32 update math.

Titan

Titan offloads gradients as well as optimizer state, reducing VRAM further at the cost of slower updates.

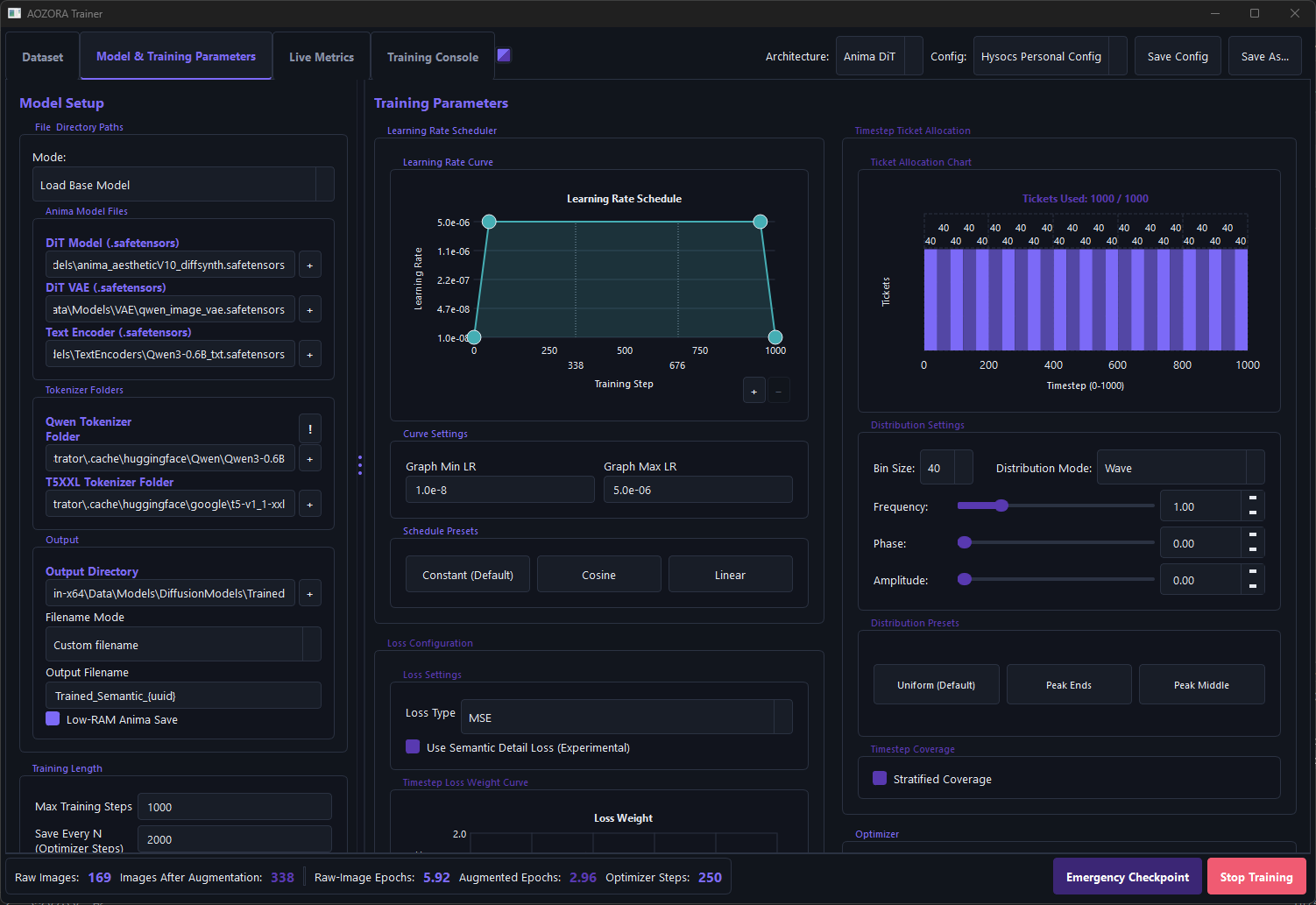

Visual Training Controls

• Timestep allocation: Shape training coverage with uniform, Wave, Logit-Normal, or Beta distributions.
• Timestep loss weights: Use a separate graph to control how strongly errors from each timestep range affect training.
• Learning-rate curve: Draw warmup, hold, decay, or custom schedules.
• Layer targeting: Freeze matching UNet or DiT modules to reduce memory use and control which parts are trained.

Caching and Resolution

• Cache VAE latents, text embeddings, pooled embeddings, and null conditioning.
• Encode long SDXL captions across multiple CLIP chunks.
• Assign images to aspect-ratio-aware buckets with correct SDXL size metadata.
• Optionally cache nearby bucket variants for better aspect-ratio coverage.

Multi-bucket and caption-chunk caching improve flexibility but use more disk space and preprocessing time.

Model Compatibility

The SDXL UNet trainer supports epsilon, v_prediction, and rectified_flow models. The separate Anima trainer targets Anima DiT models. Model paths, prediction type, VAE normalization, and conditioning components must match the selected model family.

Monitoring, Checkpoints, and Resume

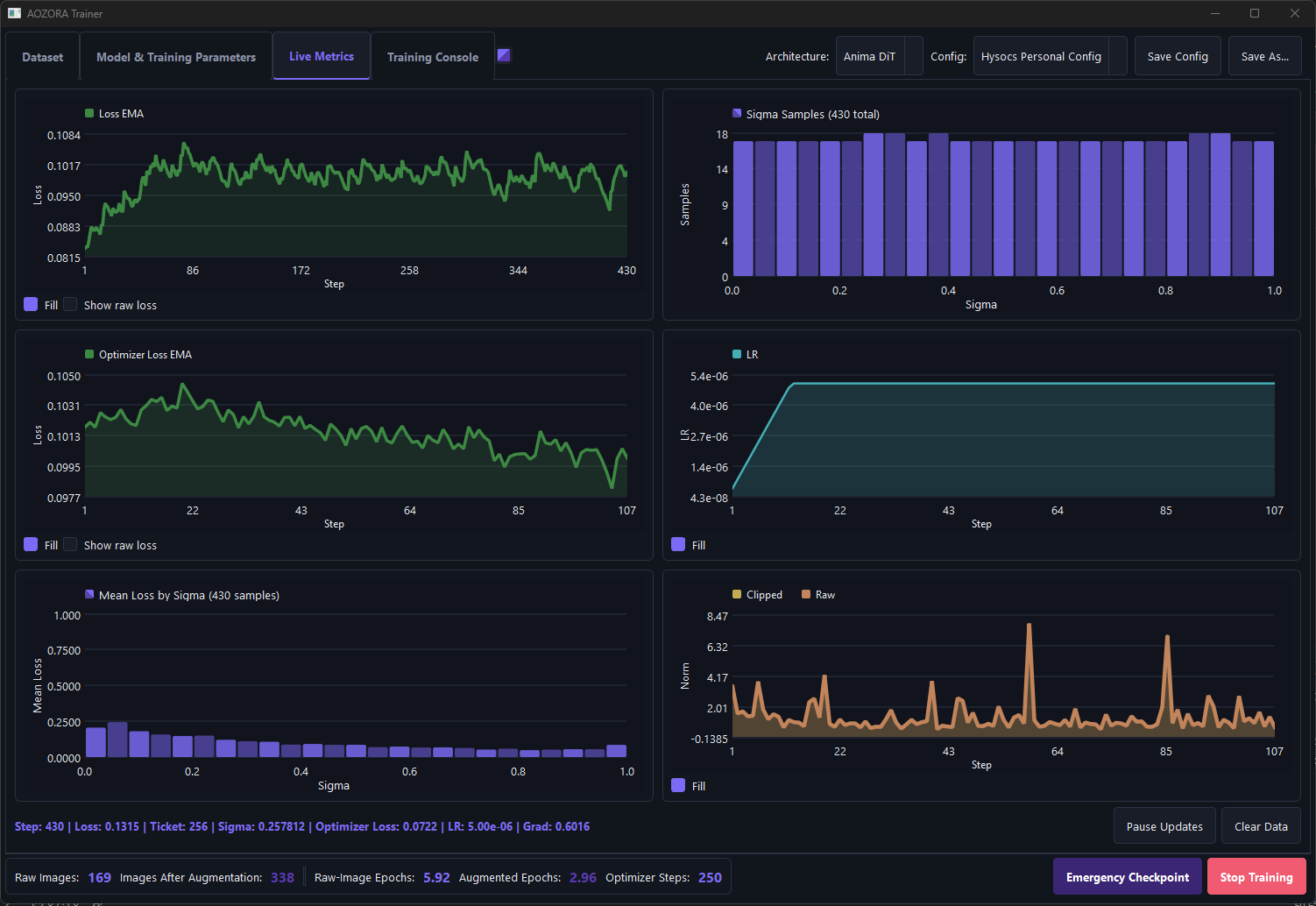

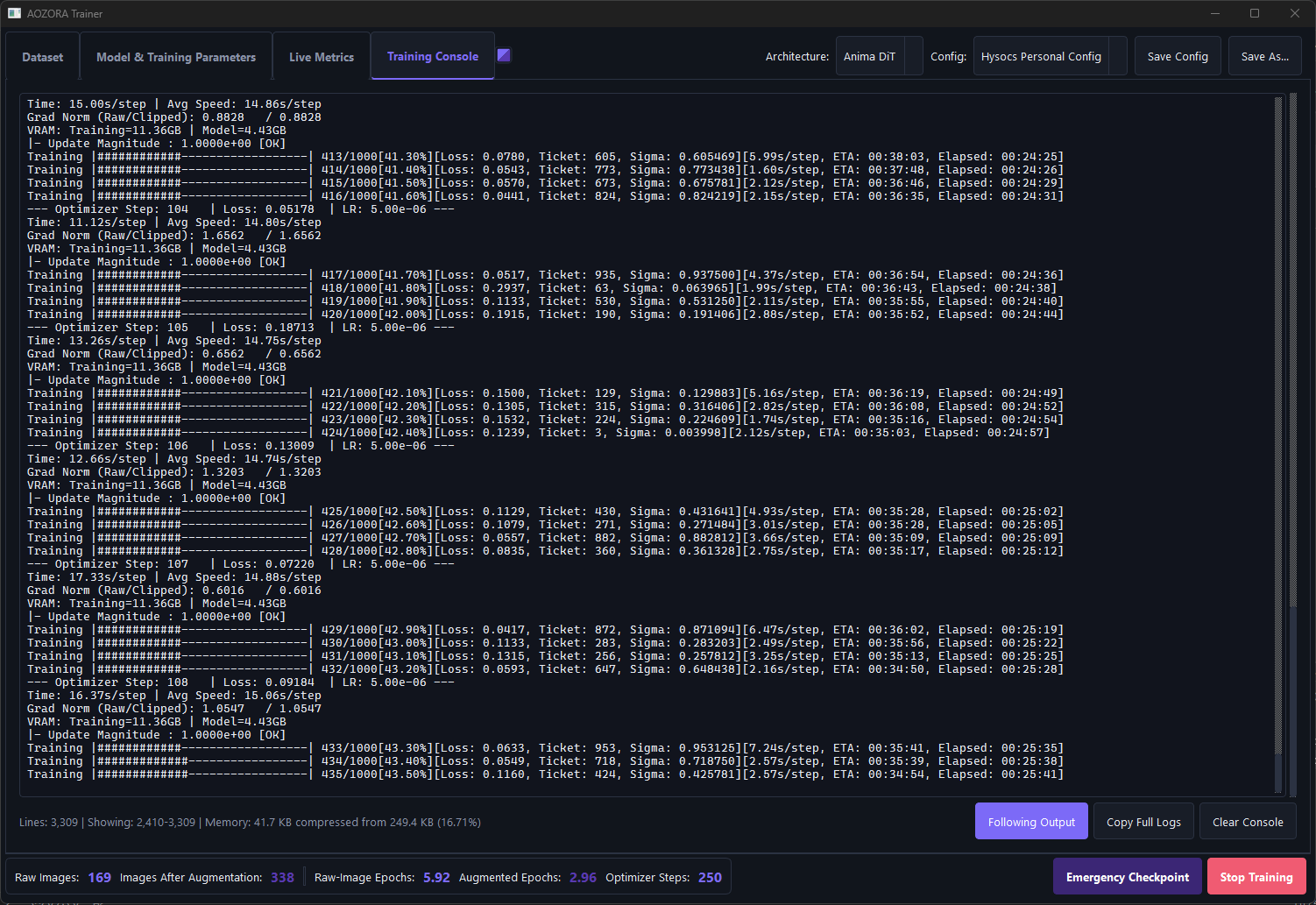

The GUI reports loss, timestep, learning rate, gradient norm, timing, ETA, VRAM, and checkpoint status. Saved training states include optimizer, scheduler, and timestep-sampler state so interrupted runs can resume.

Notes and Limitations

• Standard SDXL UNet and Anima DiT .safetensors checkpoints are the main targets.
• Merged or unusual architectures may need different layer exclusions.

---

Current Goals

Aozora grew from the effort to make full-model SDXL training reliable on a single consumer GPU. Earlier experiments showed how easily hidden defaults, memory limits, and model-specific settings could derail a run, so the project focuses on making those choices visible and understandable.

Current priorities are stable low-VRAM training, safer defaults, clearer diagnostics, fewer hidden assumptions, and practical support for SDXL UNet and Anima DiT models. New features should strengthen that workflow without turning the trainer into a collection of opaque presets.
