NodeVideo

NodeVideo is a local-first, artifact-driven editor for short-form creator productions. Dance is the first deeply instrumented profile, while the creator-taste and audit contracts also cover tutorials, talking-head videos, comedy, montage, and other formats. Its primary workflow is:

authorized prior productions -> reusable creator profile -> new source/reference media + brief -> source-only interpretation -> global edit and editorial plan -> fixed render -> freeze -> evaluator-only conjunctive fidelity gates

The product value is the completed editorial outcome: understanding the choreography, choosing the right performance for each musical phrase, cutting on intentional beats, keeping text off the body, muting unusable camera audio, and handing the creator a usable export or licensed-platform music handoff. Agents choose and explain; versioned primitives measure; typed artifacts control fixed render code.

Deployment replay

Open the NodeVideo production entry point. When this branch is deployed, it presents the song-conditioned replay on laptop and phone with no sign-in. Vercel serves hash-bound replay artifacts; heavy media analysis and rendering remain local or in a media worker.

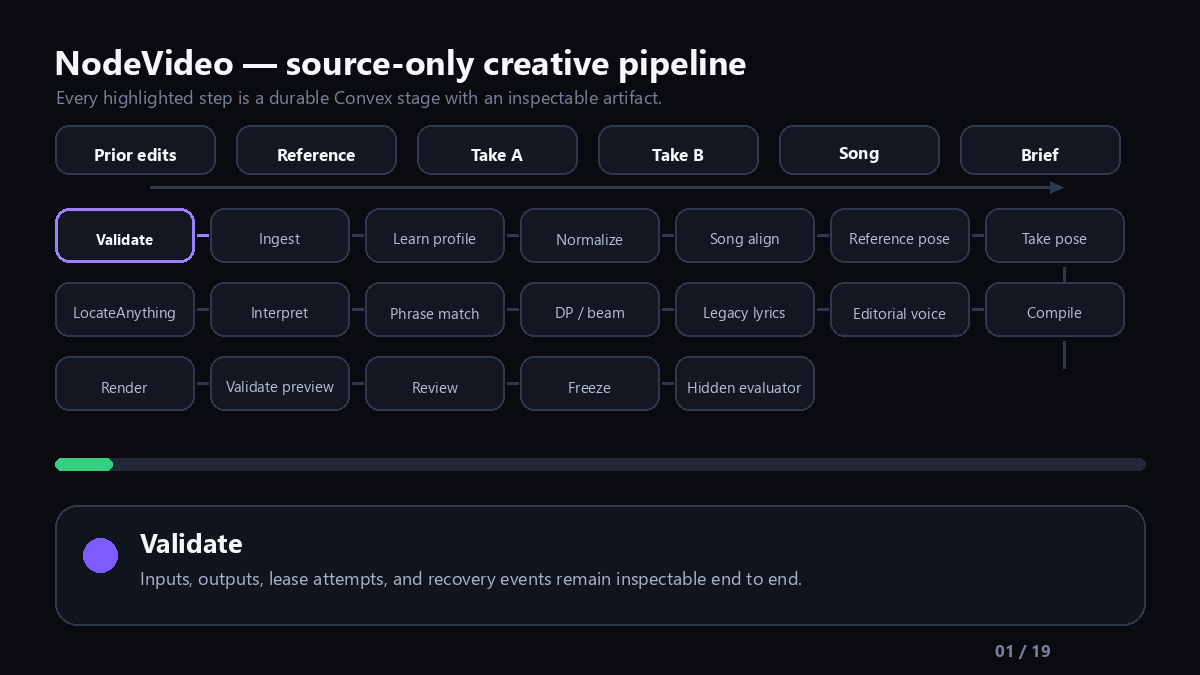

The animated 19-stage pipeline and live LocateAnything comparison are also served by the production deployment.

The foreground demo is a deterministic six-second public fixture with:

• one generated original choreography reference;
• two generated creator takes;
• a public-domain generated song segment;
• source-only beat/phrase and pose evidence;
• three body-safe timed text cues;
• muted camera audio; and
• canonical analysis, plan, render, read-log, and freeze artifacts.

The public replay route and its manifest route are published with this branch. This validates mechanics and isolation, not generalized creative taste or arbitrary human-pose accuracy. A separate research-only live receipt exercises NVIDIA LocateAnything on the supplied case; one successful frame is not a grounding-accuracy benchmark.

The branch also publishes the supplied real-media case as a silent picture-only calibration via its 44.5-second plan route and score-manifest route. No commercial soundtrack or source container is included in that new public preview.

Reusable creator profile and production audit

nodevideo.creator-taste-audit converts authorized production evidence into a versioned CreatorTasteProfile. Each learned value retains supporting production counts, confidence, and evidence references across editorial attention, creator voice, spatial grammar, visual treatment, identity, CTA, and end-card behavior. One-production profiles are explicitly provisional.

The same pack audits candidate productions and validates the evaluator's target interpretation. If the claimed spec cannot explain visible OCR roles, persistent branding, layout zones, grade, or delivery, creative scoring is invalid. Once that prerequisite passes, provenance, structure, semantic overlays, layout, visual treatment, creator identity, and delivery are conjunctive gates: every required gate must pass. NodeAgent proposes profile/audit candidates; NodeVideo retains schema, hash, project-boundary, persistence, and owner-review authority.

npm run taste:audit -- `
  --input .qa/evidence/private/style-gap-audit/style-gap-report.json `
  --out .qa/evidence/private/creator-taste/run.json `
  --profile-id creator-taste.owner-v1 `
  --content-kind dance `
  --derive-target-spec

--derive-target-spec is for an owner-authorized reference-learning run. Omit it when auditing an existing interpretation so the consistency gate can expose missing semantics instead of silently repairing them.

For each production, npm run production:audit produces content-neutral frame, OCR, edit-plan, and seven-gate evidence. --reuse-observations-from makes evaluator changes cheap to replay while preserving the original observations and disclosure. This is how the same NodeAgent workflow can evaluate dance, tutorials, talking-head clips, comedy, and montage work without introducing a new custom renderer or scoring script for each format.

Kinetic text is represented as discrete overlay events rather than one lyric-length caption. The fixed renderer width-fits each cue, emits an inspectable glyph box, and npm run overlay:clearance checks that box against Pose Landmarker evidence from the rendered timeline. More than five percent body overlap blocks approval, including collisions that occur only near a cut boundary.

How the edit is interpreted

The source-only analyzer aligns time-indexed normalized poses from each take to the original dance, maps the user-chosen song's beats and downbeats, and builds a choreography candidate lattice. A global DP/beam search chooses phrase boundaries and takes from motion completion, gesture apex, lyric, onset, beat, and downbeat evidence. A fixed beat grammar is not an optimizer input.

Every phrase candidate records choreography agreement, completeness, framing, expression/quality, and embodied-layout evidence. A quality gate allows contrast between takes without selecting a materially worse performance. Optional timed lyrics are placed in normalized safe zones outside the grounded body/face; missing or ambiguous grounding stops for manual review instead of inventing a result.

Generation produces four canonical boundaries:

1. ChoreographyAnalysis (nodevideo.choreography-analysis.v1);
2. SongConditionedPlan (nodevideo.song-conditioned-plan.v1);
3. EditPlan (nodevideo.edit-plan.v1); and
4. Freeze (nodevideo.choreography-freeze.v1 plus a wrapper receipt).

The EditPlan routes the chosen song and explicitly mutes audio from every take. It drives the fixed renderer in scripts/workers/edit-plan-renderer.mjs; an agent cannot inject JSX, CSS, shell commands, or a bespoke FFmpeg graph. The evaluator verifies all frozen hashes before it can open a held-out target plan.

Read the full workflow, artifact contracts, rights boundary, proof ledger, and exact evaluator command in docs/song-conditioned-pipeline.md.

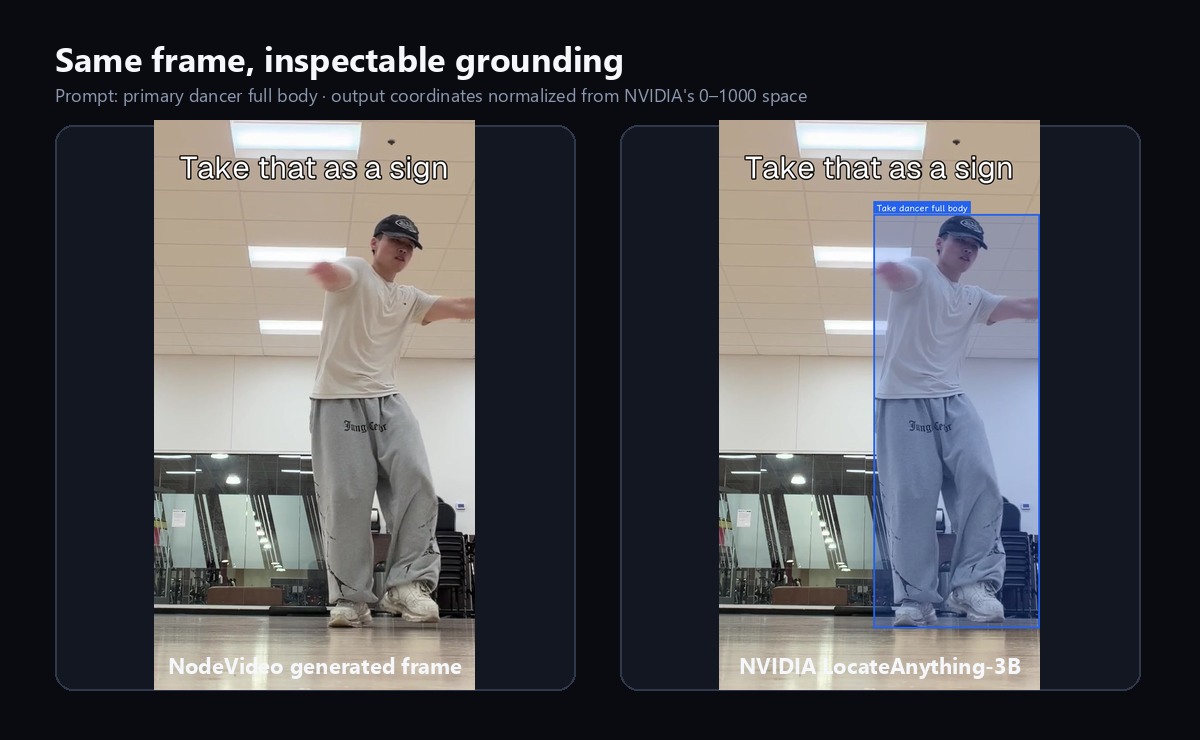

Live LocateAnything sidecar

NodeVideo now includes a real /health + /locate sidecar backed by NVIDIA's official free queued Hugging Face Space. Copy .env.example to .env, review the NVIDIA code and model licenses, and set NODEVIDEO_LOCATEANYTHING_LICENSE_ACCEPTED=true only for permitted research/non-commercial use. The included registry points at the public proof frame; replace it with a private ignored registry for local assets.

npm run grounding:sidecar
node --env-file=.env scripts/quality/grounding-doctor.mjs --json

The free endpoint can sleep, queue, or rate-limit. HF_TOKEN is optional for the public Space but recommended for an identifiable Hugging Face quota. The same typed contract can target an operator-managed local worker without changing choreography or caption-planning callers.

What the supplied-case calibration proves

The real-media generation interface never accepted the final target picture or target plan. It used Source A as a disclosed creator-selected choreography fallback, aligned Source B by normalized pose, applied the beat template, selected A/B/A/B/A over five phrases, rendered, and froze. Only then did the evaluator open the target plan. This is an audited CLI/read-log boundary, not an OS sandbox.

Post-freeze measure	Result
Cut F1 at 0.75 s tolerance	0.909091
Mean nearest-cut error	0.366667 s
Maximum nearest-cut error	0.633333 s
Neutral source agreement	5 / 5 phrases
Duration	44.5 s generated / 44.5 s target
Taste status	not-evaluated

These are legacy proximity diagnostics, not an editorial pass. The 0.75 s tolerance is too loose for dance editing, and the nearest-cut aggregate does not replace signed, frame-level accounting. The supplied-case reconstruction verdict is therefore failed under the current two-frame gate.

This is a target-picture-isolated, target-audio-oracle calibration. The exact authorized audio excerpt was supplied as timing input, so it does not prove song identity/excerpt selection or blind creative taste. The current supplied case also lacks an independent original choreography video, an independent creator-supplied song master/segment, and timed lyrics. Source A is therefore a clearly labeled fallback reference, and no lyric overlay is invented.

The earlier owner-authorized V2 target-guided reconstruction remains useful forensic/render calibration, not source-only planning proof. V1 remains immutable failure evidence, including its wrong 16.067-19.633 s phrase and missing music/text. See docs/authorized-case-v2-forensics.md.

Run locally

Requirements: Node.js 22+, npm 10+, Chromium for browser tests, and FFmpeg/FFprobe for regeneration or independent media verification.

npm ci
cp .env.example .env
npm run dev

In PowerShell, use Copy-Item .env.example .env. Open http://localhost:4173 from the laptop, or use the laptop's LAN address from a phone on the same network; Vite is configured to listen on the host interface.

When the private integrated render exists at .qa/evidence/private/integrated-inspector-v1/frozen-generation-v5/source-only-song-preview.mp4, npm run dev exposes it through a byte-range-capable development-only route. The generated-edit player then shows Local soundtrack enabled, plays the AAC soundtrack, and drives the shared frame inspector while it plays. Set NODEVIDEO_LOCAL_PREVIEW to another private MP4 path to override the default. npm run build, npm run preview, Git, and Vercel continue to use the silent hash-bound public preview; outside the Vite development server the private URL never returns video bytes (static hosts may route the unknown URL to the HTML application shell).

Run the complete capability/grounding/worker health check:

npm run doctor

Regenerate and verify the public-domain song-conditioned replay:

npm run proof:song:public

Verify the published real-case calibration without private media:

npm run proof:song:real:verify

Run the post-freeze evaluator explicitly:

npm run eval:song -- `
  --freeze .qa/evidence/private/song-conditioned-source-only-v1/freeze-receipt.json `
  --generated-plan .qa/evidence/private/song-conditioned-source-only-v1/edit-plan.json `
  --target-plan .qa/evidence/private/reference-analysis-v2/edit-plan-reviewed.json `
  --output .qa/evidence/private/song-conditioned-source-only-v1/post-freeze-evaluation.json `
  --allow-target-audio-oracle

Do not run the evaluator until the generation freeze exists. Omit --allow-target-audio-oracle for a normal source-only case.

Grounding without lock-in

The same provider-neutral LocateRequest, LocateResult, and GroundingHealth contract supports:

• deterministic replay geometry for CI;
• creator-reviewed manual geometry;
• an explicit fail-closed disabled profile; and
• an optional operator-managed LocateAnything HTTP sidecar.

The default demo needs no model or GPU. npm run grounding:doctor does not contact a model service, download weights, or accept a license. Durable artifacts contain trace/asset IDs and normalized geometry, not raw frames, local paths, credentials, or vendor payloads.

LocateAnything code and weights have separate terms: the upstream Eagle code license is Apache-2.0, while the LocateAnything model license limits noncommercial use to research/evaluation. NodeVideo requires explicit operator license references and acceptance before an HTTP model profile can activate. It makes no visual-prompt claim: the released checkpoint is documented as not supporting visual-prompt inference out of the box.

Music and Instagram handoff

Owned or otherwise authorized audio can drive preview/export when its rights attestation is bound to the plan. For Instagram catalog music, NodeVideo instead supplies the track/search identity, intended segment, beat/phrase anchors, and visual instructions so the creator can add and confirm the recording inside Instagram for their account and region. NodeVideo does not redistribute the commercial file or claim an exact Instagram waveform offset until it is confirmed in-platform.

Quality gates

npm run lint
npm run typecheck
npm run test
npm run check:ui
npm run capability:validate
npm run grounding:doctor
npm run worker:verify
npm run worker:song:verify
npm run proof:song:real:verify
npm run build
npx playwright install chromium
npm run test:e2e

npm run check runs the static, unit, schema, grounding, receipt, UI-policy, worker, real-case proof, historical-proof, and build gates. Browser QA covers desktop, tablet, and phone widths, accessibility, keyboard operation, media decoding, and horizontal overflow. The stable selector and consent contract is in .qa/profile.md.

Primitive-first implementation

NodeVideo keeps custom maintenance small by composing existing primitives:

• generated shadcn/ui and AI Elements for generic interaction and artifacts;
• react-o11y for recorded trace presentation;
• NodeAgent-style typed tools, deterministic receipts, and validation;
• Convex workflow/event patterns for durable orchestration;
• MediaPipe pose evidence, librosa beat/onset analysis, OpenTimelineIO interchange, and FFmpeg fixed rendering; and
• provider-neutral grounding rather than vendor-specific plan fields.

npm run check:ui rejects raw generic controls, direct Radix imports, inline layout styles, arbitrary Tailwind dimensions, extra authored stylesheets, and custom media queries. See docs/ui-primitives.md.

Repository guide

• packs/song-conditioned-auto-edit/ - source-only schemas, tools, claims, and replay gates.
• packs/embodied-grounding/ - provider-neutral grounding contract and license boundary.
• fixtures/media/song-conditioned-auto-edit-v1/ - public-domain reference/takes/song plus canonical artifacts and preview.
• fixtures/media/song-conditioned-real-calibration-v1/ - target-isolated real-case artifacts, silent preview, and post-freeze score.
• scripts/analysis/song_choreography_analyzer.py - source-only pose/song interpretation.
• scripts/quality/evaluate-song-conditioned.mjs - freeze-first target evaluator.
• docs/song-conditioned-pipeline.md - detailed workflow and proof ledger.
• docs/architecture.md - system responsibility and evidence boundaries.
• fixtures/media/blind-source-only-pilot-01/ - earlier blind exploration retained as secondary evidence, not the primary product contract.

Claim boundary

The checked-in synthetic replay proves deterministic mechanics. The supplied real case is a target-picture-isolated development calibration under a disclosed target-audio oracle; it does not pass strict editorial timing. The newer integrated case proves independent-reference ingestion, target isolation, artifact integrity, and 5 / 5 source choices, but its signed boundary errors are -3, -8, +5, +5, -2 frames, with one additional unmatched target boundary. Its strict verdict is also failed. Neither case proves general creative taste. See docs/strict-editorial-audit.md.
