Modify sivann's ZigBee sample code to your needs

---

Contents

1. [Modify files](#Modify files)
2. [Endpoint & cluster & attribute](#Endpoint & cluster & attribute)
3. [How to define and handle your events](#How to define and handle your events)
4. [Example step by step](#Example step by step)
5. [Modify ZigBee network to your setting](#Modify ZigBee network to your setting)

1. Modify files

以愛文西門科技的 SampleWeatherStation 為例，並以 IAR 開啟其 workspace 。

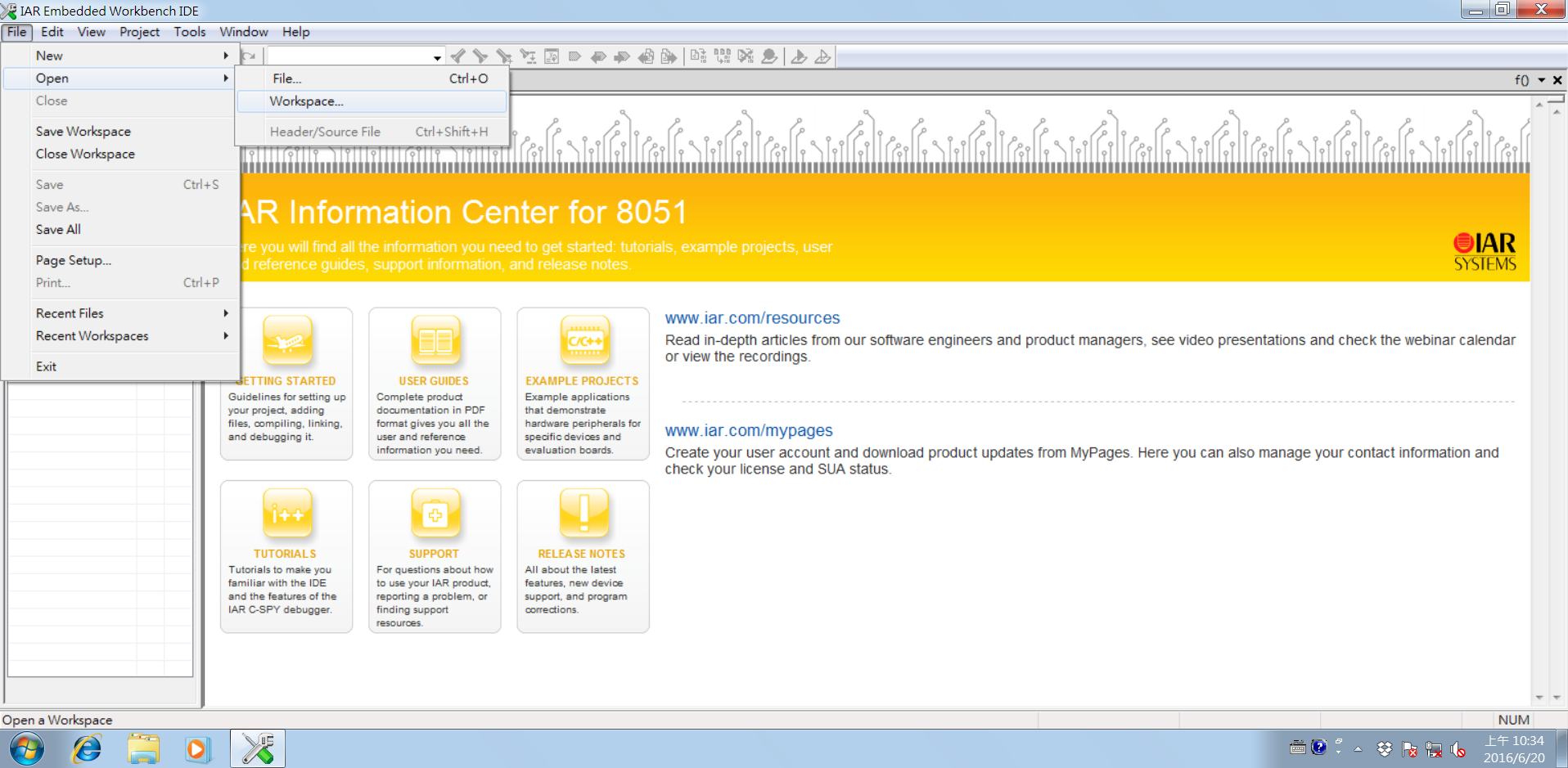

• IAR開啟WeatherStation workspace :
  • File -> Open -> Worksapce

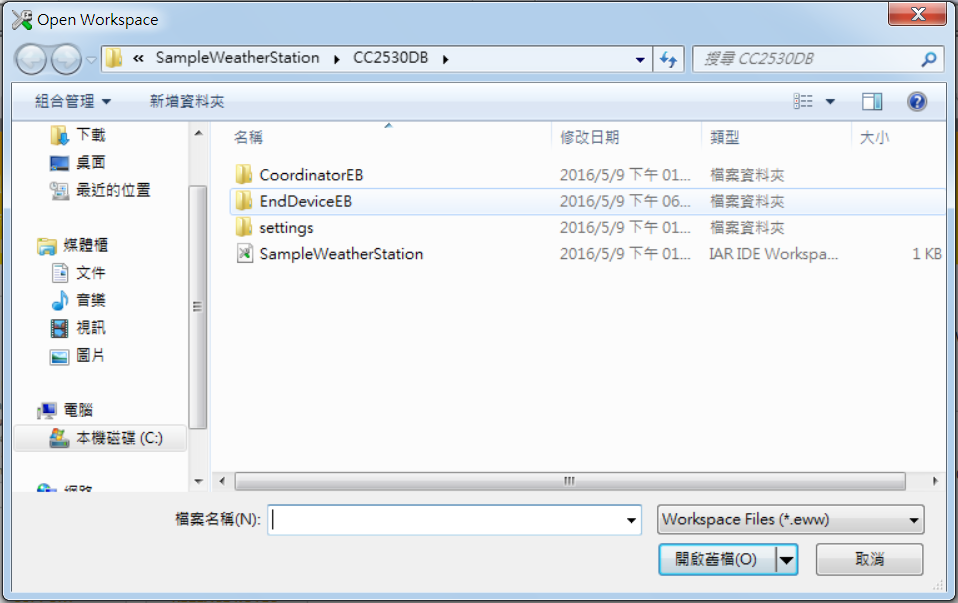

  • 開啟 SampleWeatherStation :

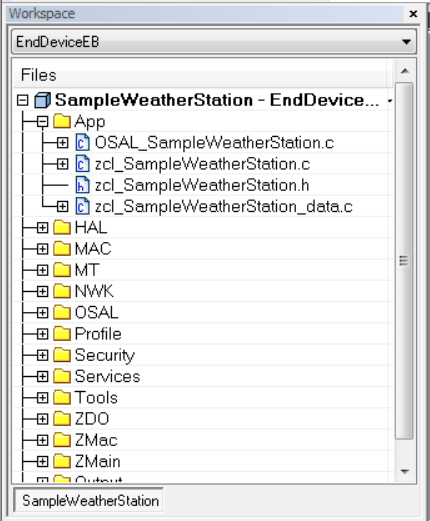

• 檔案放置位址: App 裡面，其位置可以用 Open Containing Folder 。

• 檔案有 OSAL_SampleWeatherStation.c, zcl_SampleWeatherStation.c, zcl_SampleWeatherStation.h & zclSampleWeatherStation_data.c 。
• 會修改到的檔案 zcl_SampleWeatherStation.c, zcl_SampleWeatherStation.h & zclSampleWeatherStation_data.c 。

2. Endpoint & cluster & attribute

• EndPoint can be changed in zcl_SampleWeatherStation.h

#define SAMPLEWEATHERSTAITON_ENDPOINT            8

• 資料存取於ZCL或是Private的cluster的attribute, command 。
• 在 zclSampleWeatherStation_data.c 的 zclSampleTemperatureSensor_Attrs 下定義。
  Example:

CONST zclAttrRec_t zclSampleTemperatureSensor_Attrs[SAMPLETEMPERATURESENSOR_MAX_ATTRIBUTES] =
{
...

// *** Temperature Measurement Attriubtes ***
  {
    ZCL_CLUSTER_ID_MS_TEMPERATURE_MEASUREMENT,  // Cluster
    { // Attribute record
      ATTRID_MS_TEMPERATURE_MEASURED_VALUE, //Attribute
      ZCL_DATATYPE_INT16, //Datatype
      ACCESS_CONTROL_READ,  //Access read or write
      (void *)&zclSampleTemperatureSensor_MeasuredValue //command or data
    }
  },
// *** Humiudity Measurement Attriubtes ***
  {
    ZCL_CLUSTER_ID_MS_RELATIVE_HUMIDITY,  // Cluster
    { // Attribute record
      ATTRID_MS_RELATIVE_HUMIDITY_MEASURED_VALUE, //Attribute
      ZCL_DATATYPE_UINT16,  //Datatype
      ACCESS_CONTROL_READ,  //Access read or write
      (void *)&zclSampleTempHumiSensor_HumiMeasuredValue  //command or data
    }
  },
...

};

3. How to define and handle your events

• 在 zcl_SampleWeatherStation.h 定義應用事件的名稱。

define TEMPERATURE_HUMIDITY_SENSOR_EVT 0x0040

• 在 zcl_SampleWeatherStation.c 的 zclSampleWeatherStation_Init 設置事件。

osal_set_event(task_id, TEMPERATURE_HUMIDITY_SENSOR_EVT);

• 在 zcl_SampleWeatherStation.c 的 zclSampleWeatherStation_event_loop 設置事件迴圈與應用。

/******TempHumi******/
if ( events & TEMPERATURE_HUMIDITY_SENSOR_EVT )
{
  //design the application program
  osal_start_timerEx( zclSampleTemperatureSensor_TaskID, TEMPERATURE_HUMIDITY_SENSOR_EVT, 100 ); // after 100ms start TEMPERATURE_HUMIDITY_SENSOR_EVT
  }
  return (events ^ TEMPERATURE_HUMIDITY_SENSOR_EVT);
}

4. Example step by step

Example:

/******TempHumi******/
if ( events & TEMPERATURE_HUMIDITY_SENSOR_EVT )
{
  //design the application program
  HalHumiExecMeasurementStep(humiState);
  if (humiState == 2)
  {
    readHumData();
    humiState = 0;
    osal_start_timerEx( zclSampleTemperatureSensor_TaskID, TEMPERATURE_HUMIDITY_SENSOR_EVT, sensorHumPeriod );
  }
   else
  {
    humiState++;
    osal_start_timerEx( zclSampleTemperatureSensor_TaskID, TEMPERATURE_HUMIDITY_SENSOR_EVT, 100 ); // after 100ms start TEMPERATURE_HUMIDITY_SENSOR_EVT
  }
  return (events ^ TEMPERATURE_HUMIDITY_SENSOR_EVT);
}
...

//read temperature and humidity data
static void temperature(void)
{
  uint8 hData[HUMIDITY_DATA_LEN] = {0, 0, 0, 0};

  if (HalHumiReadMeasurement(hData))
  {
    SendTempHumiData(hData);
  }
}

//Send temperature and humidity data
static void SendTempHumiData(uint8 *hData){

  uint8 TempData[2];
  uint8 HumiData[2];
  uint16 ReceiveTemp, ReceiveHumi;
  for(uint8 i = 0;i < 4;i++){
    if(i<2)
      TempData[i] = hData[i];
    else
      HumiData[i-2] = hData[i];
  }
  ReceiveTemp = (uint16)((TempData[1] << 8) | TempData[0]);
  ReceiveHumi = (uint16)((HumiData[1] << 8) | HumiData[0]);
  zclSampleTempHumiSensor_TempMeasuredValue = TempConversion(ReceiveTemp); //temperature data stored in zclSampleTempHumiSensor_TempMeasuredValue
  zclSampleTempHumiSensor_HumiMeasuredValue = RelativeHumiConversion(ReceiveHumi); //humidity data stored in zclSampleTempHumiSensor_HumiMeasuredValue
}

5. Modify ZigBee network to your setting

How to change device's Channel, PAN ID & EndPoint

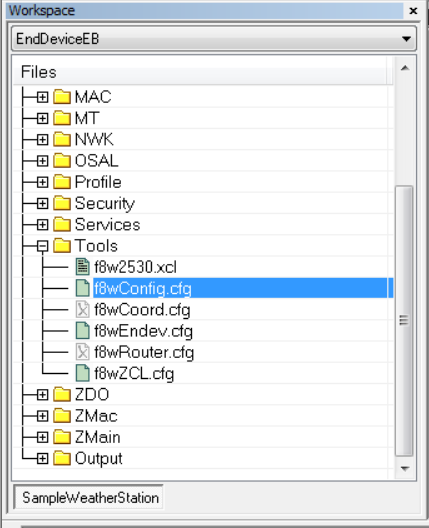

• PAN ID & Channel 在 f8wConfig.cfg 設定


PAN ID

/* Define the default PAN ID.
 *
 * Setting this to a value other than 0xFFFF causes
 * ZDO_COORD to use this value as its PAN ID and
 * Routers and end devices to join PAN with this ID
 */
-DZDAPP_CONFIG_PAN_ID=0xFFFF

Channel

/* Default channel is Channel 11 - 0x0B */
// Channels are defined in the following:
//         0      : 868 MHz     0x00000001
//         1 - 10 : 915 MHz     0x000007FE
//        11 - 26 : 2.4 GHz     0x07FFF800
//
//-DMAX_CHANNELS_868MHZ     0x00000001
//-DMAX_CHANNELS_915MHZ     0x000007FE
//-DMAX_CHANNELS_24GHZ      0x07FFF800
//-DDEFAULT_CHANLIST=0x04000000  // 26 - 0x1A
//-DDEFAULT_CHANLIST=0x02000000  // 25 - 0x19
//-DDEFAULT_CHANLIST=0x01000000  // 24 - 0x18
//-DDEFAULT_CHANLIST=0x00800000  // 23 - 0x17
//-DDEFAULT_CHANLIST=0x00400000  // 22 - 0x16
//-DDEFAULT_CHANLIST=0x00200000  // 21 - 0x15
//-DDEFAULT_CHANLIST=0x00100000  // 20 - 0x14
//-DDEFAULT_CHANLIST=0x00080000  // 19 - 0x13
//-DDEFAULT_CHANLIST=0x00040000  // 18 - 0x12
//-DDEFAULT_CHANLIST=0x00020000  // 17 - 0x11
//-DDEFAULT_CHANLIST=0x00010000  // 16 - 0x10
//-DDEFAULT_CHANLIST=0x00008000  // 15 - 0x0F
//-DDEFAULT_CHANLIST=0x00004000  // 14 - 0x0E
//-DDEFAULT_CHANLIST=0x00002000  // 13 - 0x0D
//-DDEFAULT_CHANLIST=0x00001000  // 12 - 0x0C
-DDEFAULT_CHANLIST=0x00000800  // 11 - 0x0B
